3 Line Mixer

This project is a 3 or more lines mixer. For more than 3 inputs you can repeat the input parts (P=10K R=22K). It powered with 9Vdc.

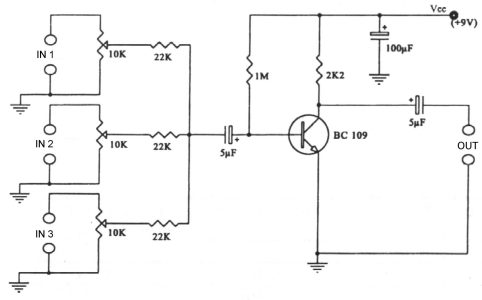

circuit diagram

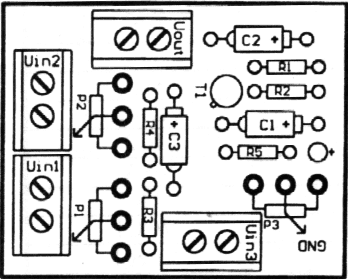

Componets Layout

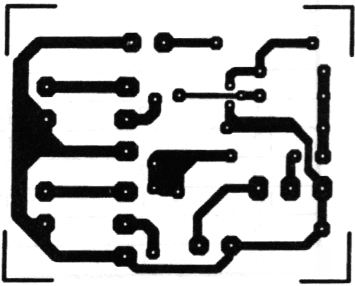

PCB (5,5cm x 4,4cm)
