Temperature Monitor

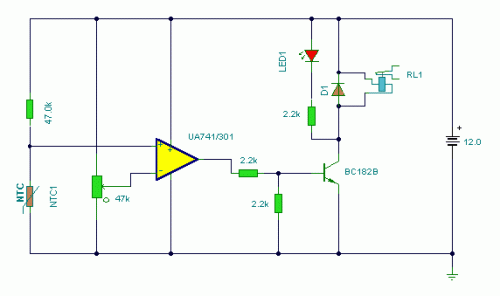

Circuit diagram:

Notes:
Using a thermistor in the position shown makes a heat activated sensor. A change in temperature will alter the output of the opamp and energize the relay and light the LED. Swapping the position of the< thermistor and 47k resistor makes a cold or frost alarm.

author: Andy Collinson
e-mail: anc@mitedu.freeserve.co.uk
web site: http://www.zen22142.zen.co.uk
